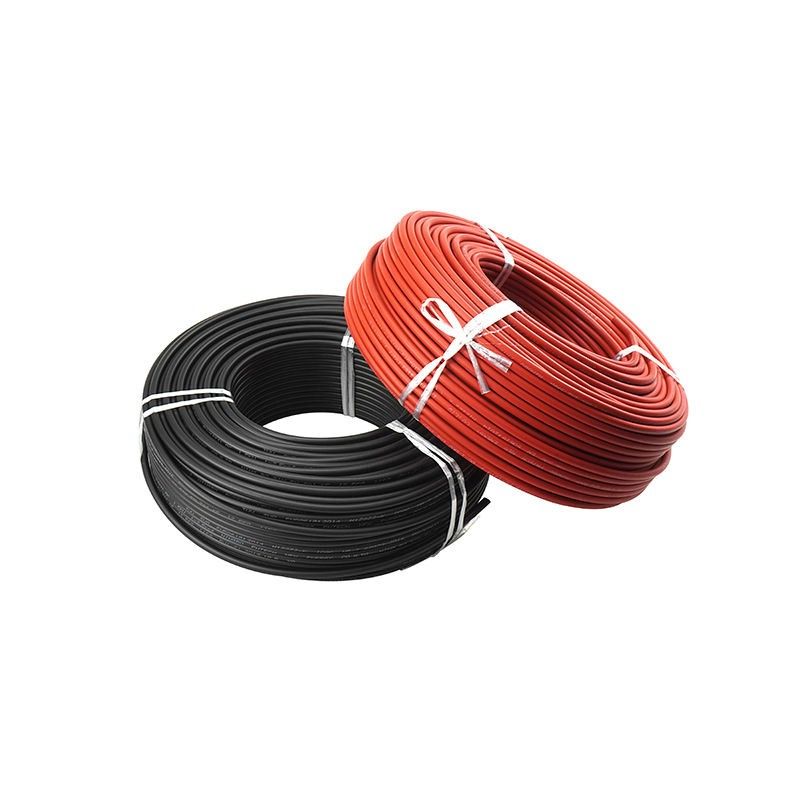

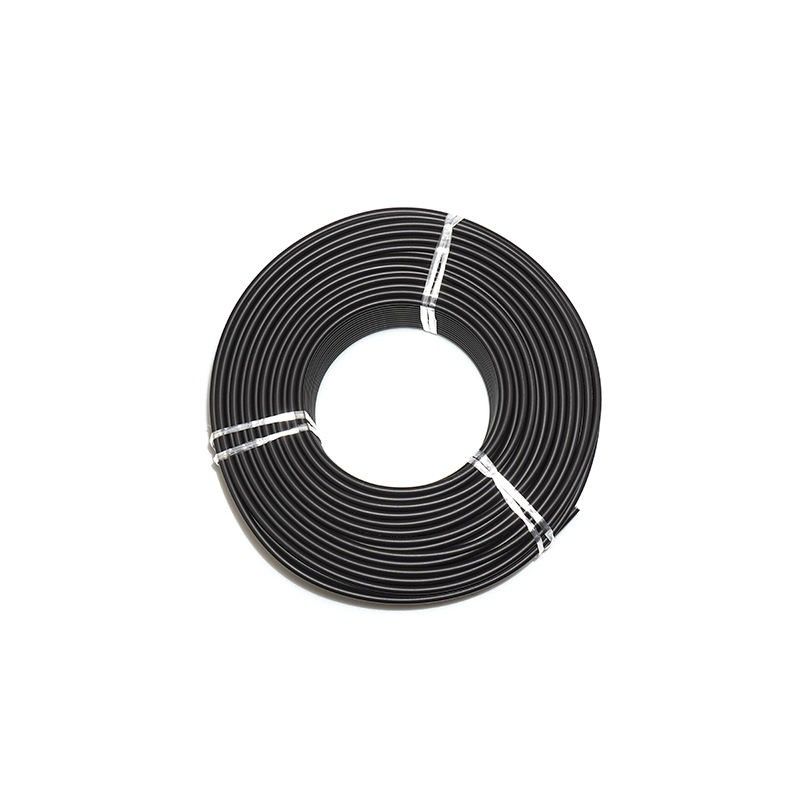

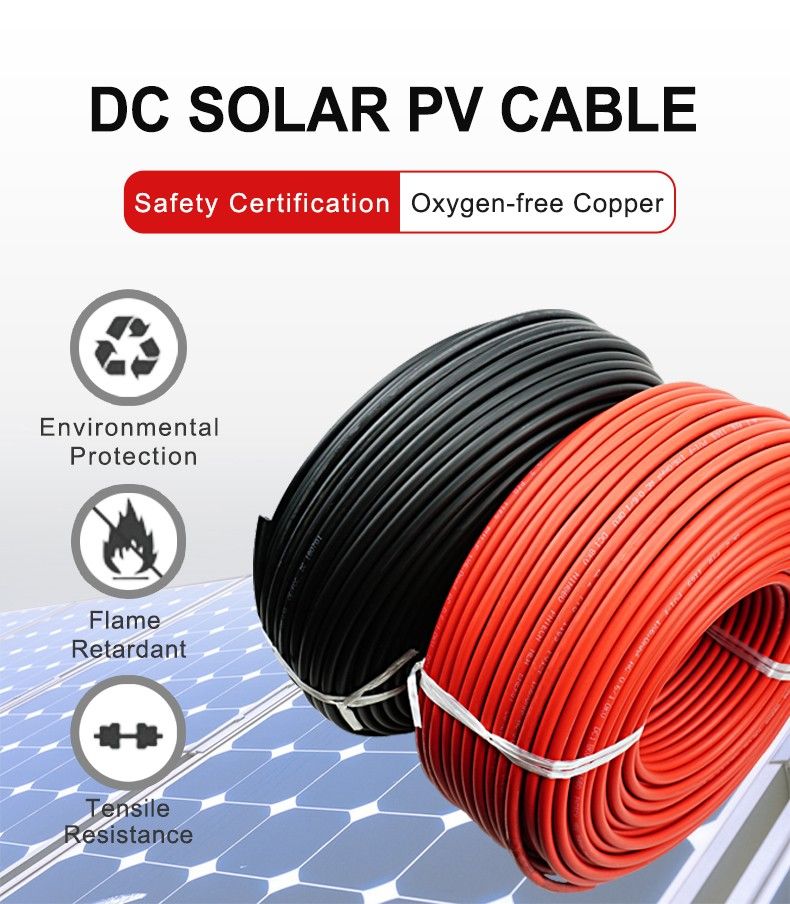

Rola de 100 metri, cablu cupru, dedicat conectarii panourlilor solare, DC voltaj maxim 1500, 44 mm2 in sectiune, culoare camasa - NEGRU

Specificatii producator:

Place of Origin: Zhejiang, China Brand Name: PNTECH

Model: 1core x 4mm2

Application: Power Station

Conductor Material: Oxygen-free Tinned Copper Wire

Conductor: Stranded Tinned Copper

Insulation Jacket: Halogen Free Cross-linked Polyolefin (XLPO)

Working Temperature: -40℃~+90℃

Rated voltage: AC:1.0/1.0KV DC:1.5KV

Damp Heat Test: EN60068-2-78

Thermal endurance test: EN60216-2

Service Life: 25 years(-40℃~+90℃)

Rated voltage: AC:1.0/1.0KV DC:1.5KV

Voltage test on completed cable	AC:6.5KV DC:15KV,5min
Ambient Temperature	-40℃~+90℃
Thermal endurance properties	120℃,2000h,elongation at break≥50%
Pressuer Test At High Temperature	EN60811-3-1
Damp Heat Test	EN60068-2-78
ACID and Alkali resistance	EN60811-2-1
O-zone resistance at complete cable	EN50396
Thermal endurance test	EN60216-2
Cold bending test	EN60811-1-4
Sunlight resistance	EN50289-4-17
Test of vertical flame at complete cable	EN60332-1-2
Halogen content test	EN60754-1/EN60754-2
Approvals	TUV SUD EN50618:2014

Cablu conectare panou solar 1x4mm2 - Rola 100m NEGRU
