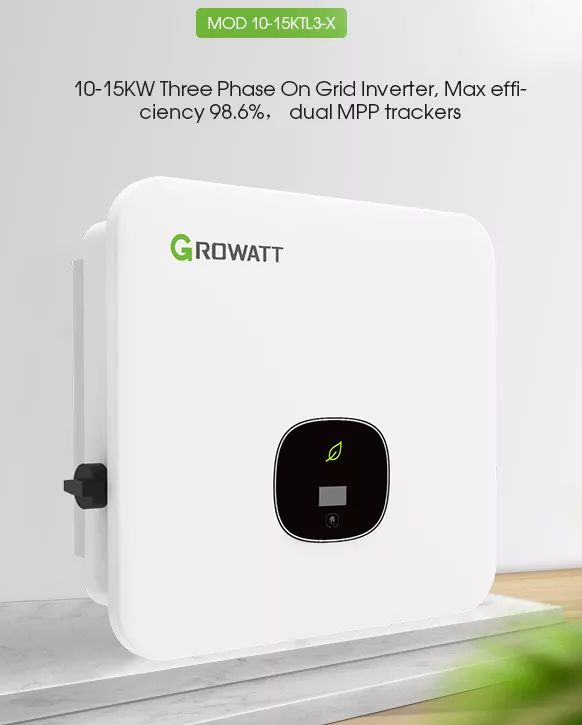

Name: Invertor 10kW, Growatt MOD-10KTL3-X/E
Brand: Growatt
SKU: INV0M9F794
Price: 7499.00 RON
Availability: InStock

Tip Invertor	MOD 10KTL3-X/E
Output Data (AC)
AC nominal power	10000W
Max. AC apparent power	11000VA
Nominal AC voltage(range*)	220V/ 380V, 230V/ 400V (340 - 440V)
AC grid frequency(range*)	50/60Hz (45-55Hz/ 55-65Hz)
Max. output current	16.7A
Adjustable power factor	0.8leading…0.8lagging
THDi	<3%
AC grid connection type	3W+N+PE
Input data (DC)
Max. recomm. power (for module STC)	15000W
Max. DC voltage	1100V
Start voltage	250V
Nominal voltage	580V
MPP voltage range	140V-1000V
No. of MPP trackers	2
No. of PV strings per MPP tracker	1
Max. input current per MPP tracker	13A
Max. short-circuit current per MPP track.	16A
Efficiency
Max.efficiency	98.6%
European efficiency	98.1%
MPPT efficiency	99.9%
Protection devices
DC reverse polarity	Yes
DC switch	Yes
DC/AC surge protection	Type II/Type III
Insulation resistance monitoring	Yes
AC short-circuit protection	Yes
Ground fault monitoring	Yes
Grid monitoring	Yes
Anti-islanding protection	Yes
Residual-current monitoring unit	Yes
AFCI protection	Optional
General data
Operating temperature range	–25°C ... +60°C
Altitude max.	4000m
Nighttime power consumption	< 1W
Topology	Transformerless
Cooling	Natural convection
Protection degree	IP66
Relative humidity	0%~100%
DC connection	H4 /MC4(Optional)
AC connection	Connector
Display	OLED+LED/WIFI+APP
Warranty: 5 years / 10 years	Yes /Optional
Interfaces: RS485 / USB/Wi-Fi/ GPRS/ RF/LAN	Yes/Yes/Optional/Optional/Optional /Optional

Invertor 10kW, Growatt MOD-10KTL3-X/E
